Description
The VSH-A600S is a high-flow pump designed for computerized control. It can be managed by any terminal emulator program from a list of basic commands. Serial connectivity is ideal for use with orchestration software, creating customized commands, or in automation applications.
Designed to operate with our Ultra Class Tubing, this unit is ideal for pumping high volumes and viscous or abrasive fluids.
Features and Benefits
- Wide flow range with a 25:1 turndown ratio

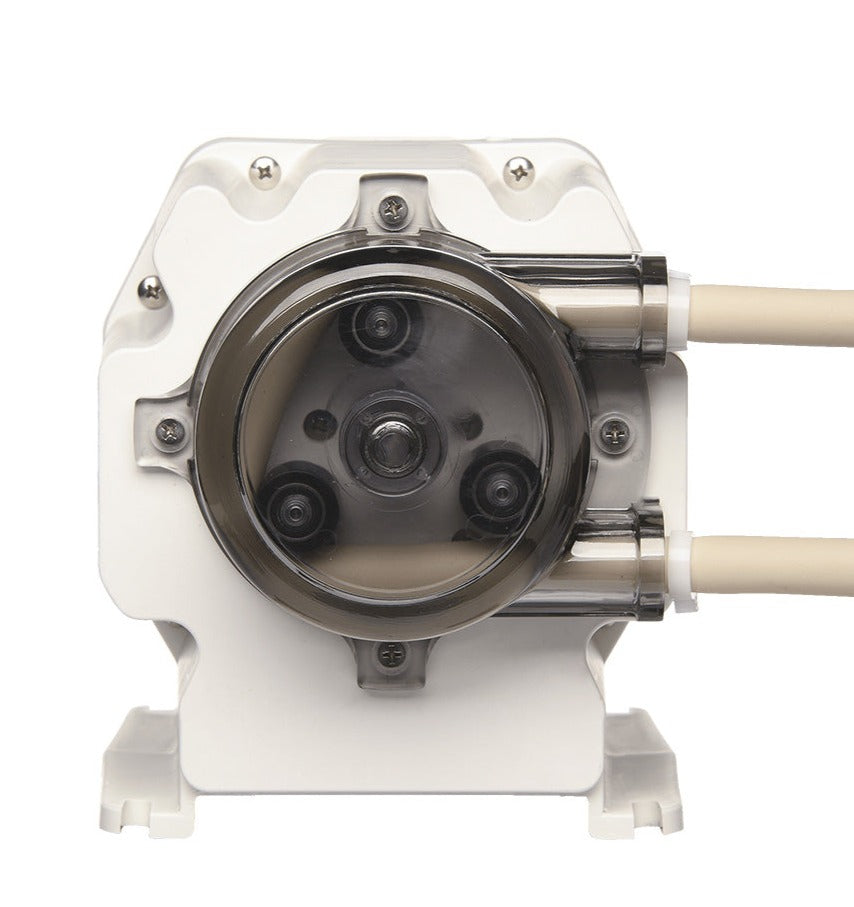

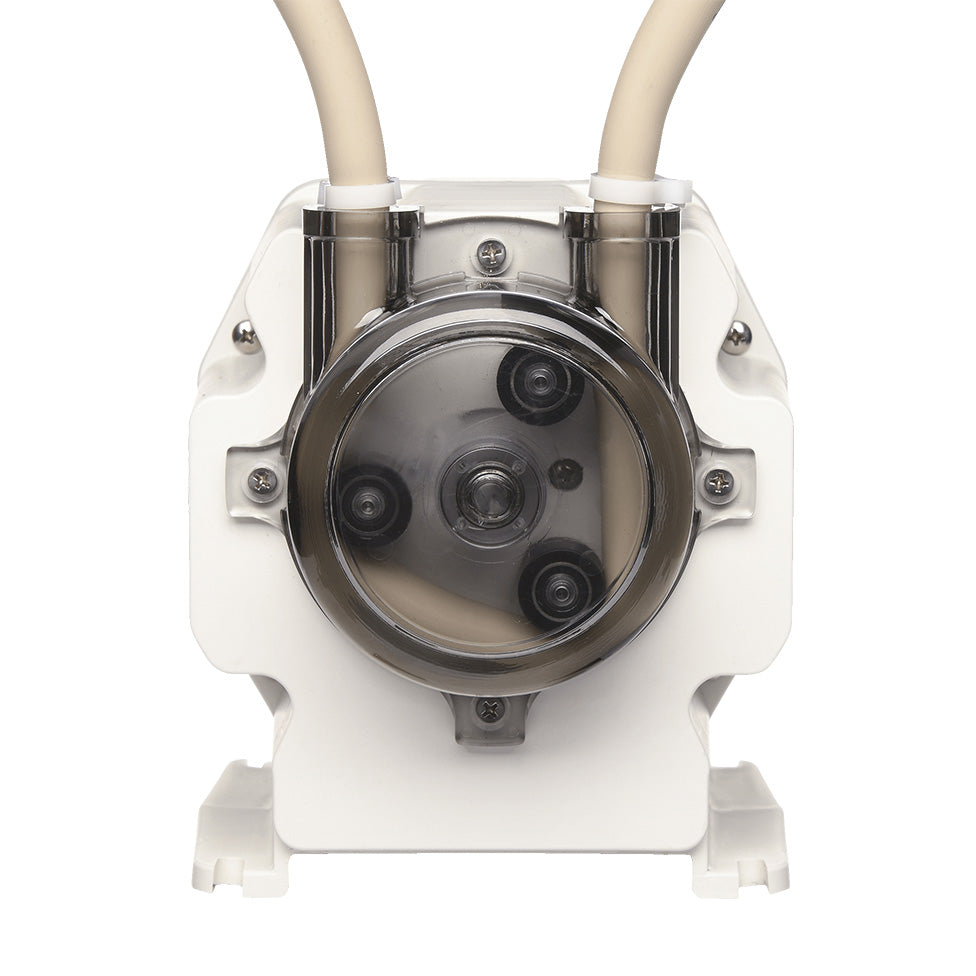

- Pump head can be set in four different tube positions (up, down, left, right)
- Accepts continuous lengths of tubing for clean fluid paths
- Lower ongoing operating costs (ANKO Ultra tubing rolls vs expensive, individual drive tubes)
- Reversible motor for bi-directional operation
- Brushless DC motor for long life and maintenance-free use
- Flexible internal power supply rating of 100-240VAC 50/60Hz
- Viscosity rating of 3000 centipoise
- Chemical resistant polymer housing
- Up to 25 psi working pressure
- UL Listed
- 3-Year Warranty
- Made in USA
Flow Rates
| Flow Rates by RPM Class and Tube Bore (mL/min) | ||||
|---|---|---|---|---|
| RPM Class | Speed Setting | 3/8" | ||
| GPD | OZ/min | mL/min | ||
| 300 | Max | 1796 | 160 | 4721 |
| Min | 72 | 6.0 | 189 | |
| 150 | Max | 847 | 75 | 2227 |
| Min | 28 | 2.5 | 74 | |
|
Notes to Flow Chart: Flow rates are for guidance purposes only and are based upon pumping ambient temperature (22°C/72°F) water at zero pressure and zero lift. Rates may increase/decrease based upon numerous factors including: motor variances, tubing characteristics, fluid viscosity, lift height, pressure and number of rollers. Anko reserves the right to make changes at any time without prior notice. The information provided is not intended for a specific application purpose. |
Specifications
| SPECIFICATIONS | |
| Model Series | VSH-A600S |
| Pump Head | A603 |
| Tubing Class | Ultra-Duty |
| Control Type | Variable Speed - Analog |
| Speed Control | +/-2.0% |
| Turndown Ratio | 25:1 |
| Directional Control | Bi-Directional |
| Motor Type | Brushless DC |
| Duty Cycle | Continuous |
| Voltage | 100-240 50/60Hz |
| Plug End Type | NEMA 5-15P |
| Max Working Pressure | 25 psi |
| Compliance | UL778; FCC Part 15b Class A |
| MATERIALS OF CONSTRUCTION | |
| Enclosure | Polypropylene RTP 155 |
| Pump Head | Polycarbonate |
| Rollers | MoS2 Filled Nylon |
| Rotor | Polycarbonate |
| DIMENSIONS |
 |
