Description
The VSL-L400A is a precision, peristaltic metering pump that can be controlled manually, or by an incoming 4-20mA analog input signal. The analog function permits direct proportioning of dosed fluids according to the level of input signal. The pump's maximum output to the signal is scalable from 20% to 100%, as determined by the potentiometer setting.
Available in one analog signal response configuration:
- Standard: 4mA = 0% Output | 20mA = 100% Output
VSL-L400 Series pumps can be ordered to utilize Performance Class Tubing (VSL-L401 Models) or Premium Class Tubing (VSL-L402 Models), giving them the ability to perform in a wide range of applications. The pump ships with samples of 1/4", 3/16” & 1/8” bore Norprene® tubing according to the model type selected.
Features and Benefits

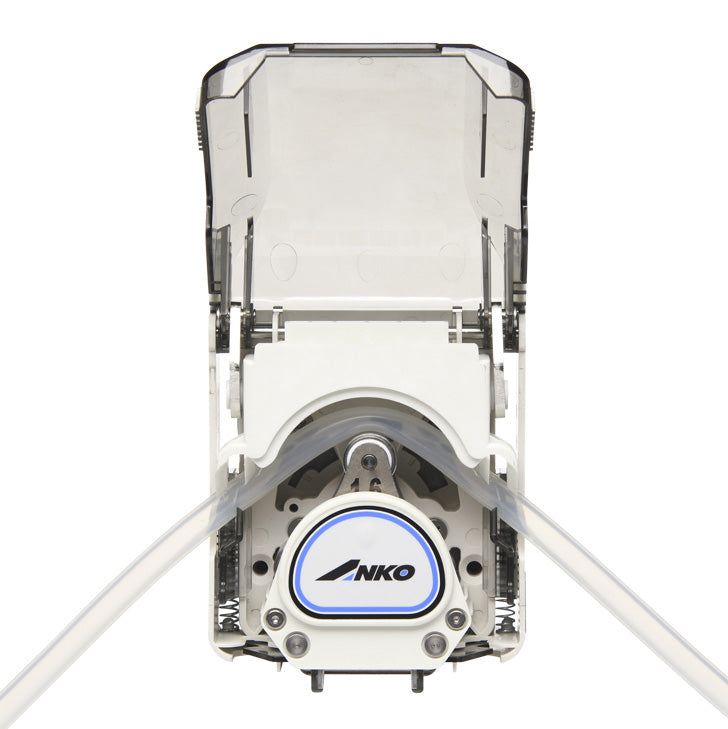

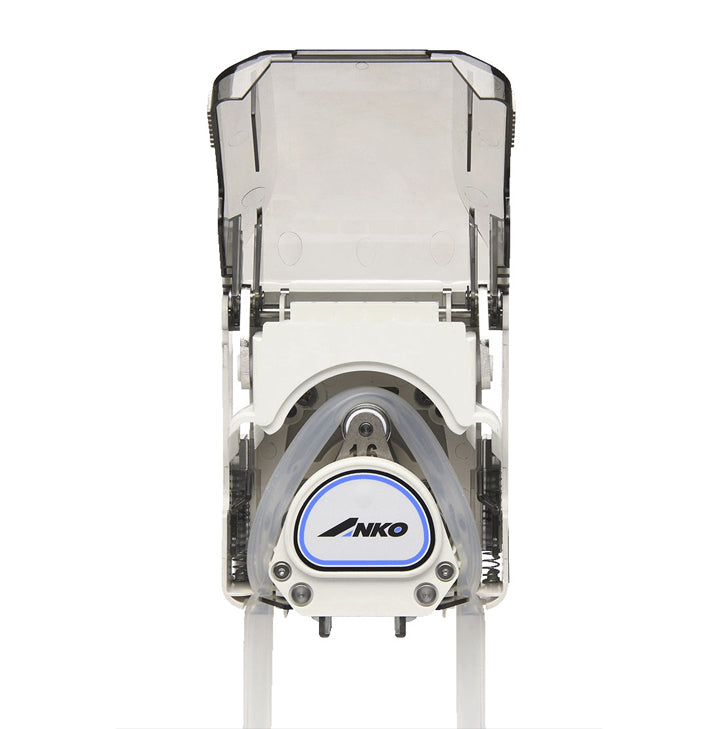

- Rapid loading pump head with automatic tube retention
- Wide flow range with a 20:1+ turndown rate
- Smooth and accurate control with +/-2.0% speed regulation
- Convertible to alternate tubing class usage with change of Roller Assembly (sold separately)
- Reversible motor for bi-directional operation
- Separate power switch to maintain speed setting when powering unit on/off
- Brushless DC motor for long life and maintenance-free use
- Medical-Grade, 100-240VAC 50/60Hz internal power supply
- Up to 25 psi working pressure
- UL Listed
- 3-year warranty
- Made in USA
INCLUDES: Drive unit, L400 pump head, 6-ft. (1.8m) NEMA 5-15P to IEC 320-C13 power cord, and samples of Norprene drive tubes (bore sizes: 1/4", 3/16", & 1/8"). Typically ships within 5 to 7 business days.
California Proposition 65 Warning
Flow Rates
| Flow Rates by RPM Class and Tube Bore (mL/min) | |||||||
|---|---|---|---|---|---|---|---|
| RPM Class | Speed Setting | Tube Bore | |||||
| *5/16" | 1/4" | 3/16" | 1/8" | *1/16" | *1/32" | ||
| 600 | Max | 3086 | 2173 | 1326 | 630 | 154 | 34 |
| Min | 102 | 72 | 44 | 21 | 5.0 | 1.0 | |
| 300 | Max | 2166 | 1525 | 930 | 442 | 108 | 24 |
| Min | 71 | 50 | 31 | 15 | 4.0 | 0.8 | |
| 150 | Max | 753 | 530 | 323 | 154 | 38 | 8.0 |
| Min | 25 | 17 | 11 | 5.0 | 1.0 | 0.3 | |
| 75 | Max | 391 | 275 | 168 | 80 | 20 | 4.0 |
| Min | 13 | 9.0 | 5.0 | 3.0 | 0.6 | 0.1 | |
|
Notes to Flow Chart: *Unavailable for Premium Class Tubing Flow rates are for guidance purposes only and are based upon pumping ambient temperature (22°C/72°F) water at zero pressure and zero lift. Rates may increase/decrease based upon numerous factors including: motor variances, tubing characteristics, fluid viscosity, lift height, pressure and number of rollers. Anko reserves the right to make changes at any time without prior notice. The information provided is not intended for a specific application purpose. |
Specifications
| SPECIFICATIONS | |
| Model Series | VSL-L400 |
| Pump Head | L401 | L402 |
| Tubing Class | Performance | Premium |
| Control Type | Variable Speed - Analog |
| Speed Control | +/-2.0% |
| Turndown Ratio | 25:1 |
| Directional Control | Bi-Directional |
| Motor Type | Brushless DC |
| Duty Cycle | Continuous |
| Voltage | 100-240 50/60Hz |
| Plug Type | NEMA 5-15P |
| Max Working Pressure | 25 psi |
| Compliance | UL778; FCC Part 15b Class A |
| MATERIALS OF CONSTRUCTION | |
| Enclosure | Powder Coated Steel |
| Pump Head | Polycarbonate; IXEF |
| Rollers | MoS2 Filled Nylon or Stainless Steel |
| Rotor | IXEF or Stainless Steel |
| DIMENSIONS |
 |
| STEP File |
