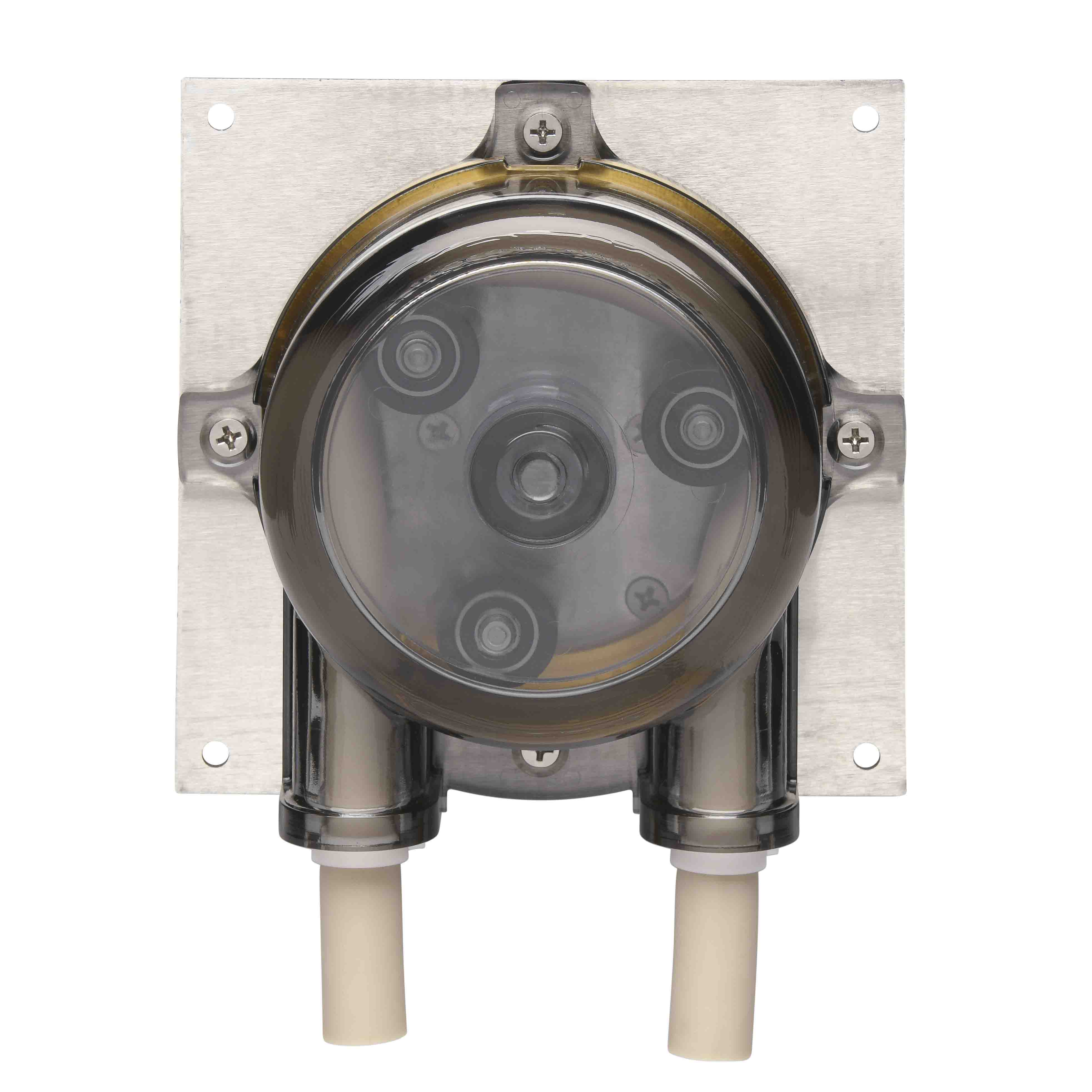

A600BX | OEM Peristaltic Pump | 24V Brushless DC | Models to 4700 mL/min

SKU: A603BX-150

Tubing Class: Ultra
RPM Class (See Flow Rates Table): 150
Price:
Sale price$245

Description

The A600BX is a high-flow pump driven by our high performance, 24V brushless DC motor with an internal controller. Designed to operate with large bore Ultra Class tubing, this unit is ideal for pumping high volumes and viscous or abrasive fluids.

The pump can be wired to use direct input voltage for simple speed control or mated with our OEM Brushless Controller which delivers 25:1 speed control, as well as directional and start/stop functions via switch closure.  For those utilizing their own controls, standard wire leads provide access to power, ground, digital direction control, frequency generator, PWM controller and brake.

The unit ships installed with 3/8" bore Ultra Norprene®. This formulation is our most popular due to its wide range of chemical compatibility and overall longevity.

Features & Benefits

  • Integrated pump and drive system
  • Accepts continuous lengths of tubing for clean fluid paths
  • Includes panel mounting plate for ease of installation
  • Viscosity rating up to 3000 centipoise
  • Up to 15 psi working pressure
  • Made in USA


Please contact us for volume quotes or configurations not available on our web store.


INCLUDES:  Drive, pump head, mounting plate and 3/8" bore Norprene® drive tube. Typically ships within 5 to 7 business days.


California Proposition 65 Warning

Flow Rates
Flow Rates by RPM Class and Tube Bore (mL/min)
RPM Class Tube Bore
3/8" 1/4"
300 4725 2100
150 2228 990

NOTES TO FLOW CHART:

Flow rates are for guidance purposes only and are based upon pumping ambient temperature (22°C/72°F) water at zero pressure and zero lift. Rates may increase/decrease based upon numerous factors including: motor variances, tubing characteristics, fluid viscosity, lift height, pressure and number of rollers. Anko reserves the right to make changes at any time without prior notice. The information provided is not intended for a specific application purpose.
Specifications
SPECIFICATIONS
Pump Series A603BX
Tubing Class Ultra-Duty
Motor Type Brushless DC (42mm)
Operating Voltage 24V
Rated Current 2.5A
Duty Cycle Continuous
Est. Motor Life 5,000+ Hours
Max. Outlet Pressure 25 psi
MATERIALS OF CONSTRUCTION
Pump Head Polycarbonate
Roller Material Acetal
Rotor Material Polycarbonate
DIMENSIONS
 STEP File
Literature

BLDC Pump Wire Leads Guide
