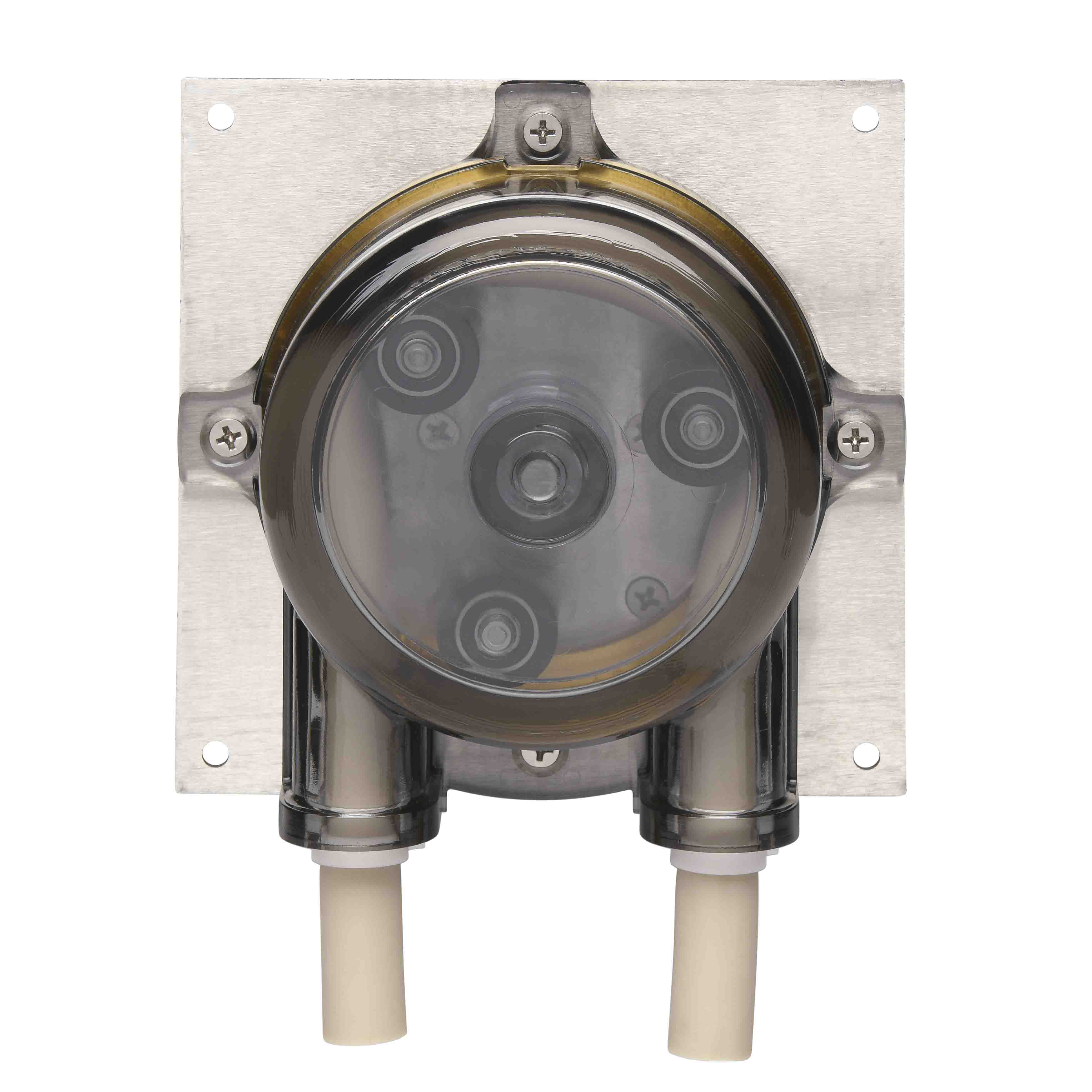

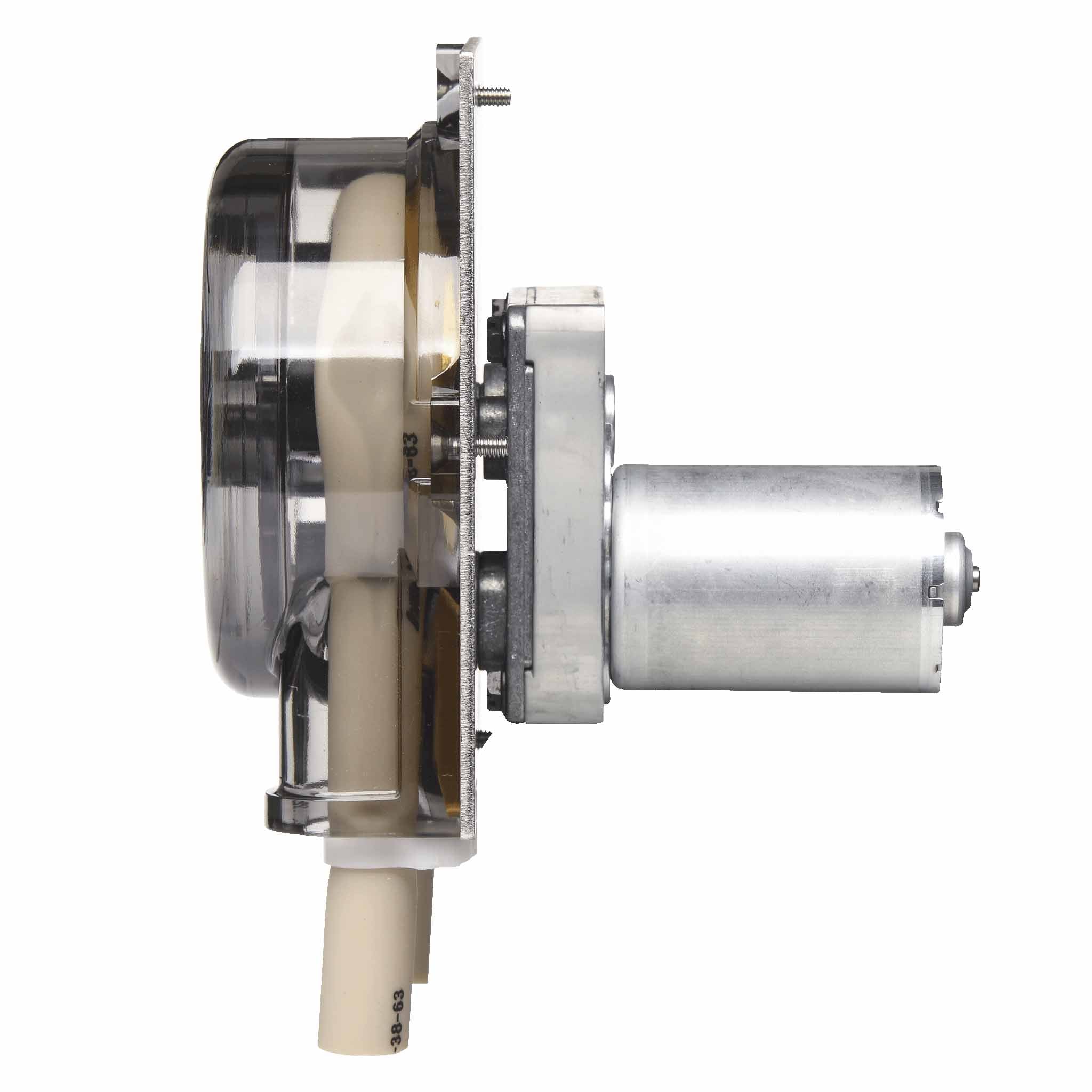

The A600BX-FB is a large capacity pump designed for fixed output consistency. It features a high-performance, brushless DC motor, paired with our closed loop, PID (proportional–integral–derivative) controller that continuously regulates output to prevent under or over dosing. This advanced control feature makes the pump an ideal solution for precision dosing, dispensing, and mixing applications.
Designed to operate with large bore Ultra Class tubing, this unit is ideal for pumping high volumes and viscous or abrasive fluids.
Features & Benefits
- Compensates for variations in voltage, fluid viscosity and tubing condition
- Adjustments made every 10 milliseconds for high consistency
- Ideal solution for multi-head filling and proportional mixing stations
- Wide range of adjustable, fixed flow rates with included potentiometer
- Accepts continuous lengths of tubing for clean fluid paths
- Includes panel mounting plate for ease of installation
- Viscosity rating up to 3000 centipoise
- Integrated pump and drive system
- Up to 15 psi working pressure
- Made in USA
Flow Rates
| Flow Rates by RPM Class and Tube Bore (mL/min) |
| RPM Class |
Speed Setting |
Tube Bore |
| 3/8" |
| 300 |
Max |
4438 |
| Min |
966 |
| 150 |
Max |
3091 |
| Min |
578 |
|
NOTES TO FLOW CHART:
Flow rates are for guidance purposes only and are based upon pumping ambient temperature (22°C/72°F) water at zero pressure and zero lift. Rates may increase/decrease based upon numerous factors including: motor variances, tubing characteristics, fluid viscosity, lift height, pressure and number of rollers. Anko reserves the right to make changes at any time without prior notice. The information provided is not intended for a specific application purpose. |
Specifications
| SPECIFICATIONS |
| Pump Series |
A603BX-FB |
| Tubing Class |
Ultra-Duty |
| Motor Type |
Brushless DC (42mm) |
| Operating Voltage |
24V |
| Rated Current |
2.5A |
| Duty Cycle |
Continuous |
| Est. Motor Life |
5,000+ Hours |
| Max. Outlet Pressure |
25 psi |
| MATERIALS OF CONSTRUCTION |
| Pump Head |
Polycarbonate |
| Roller Material |
Acetal |
| Rotor Material |
Polycarbonate |
