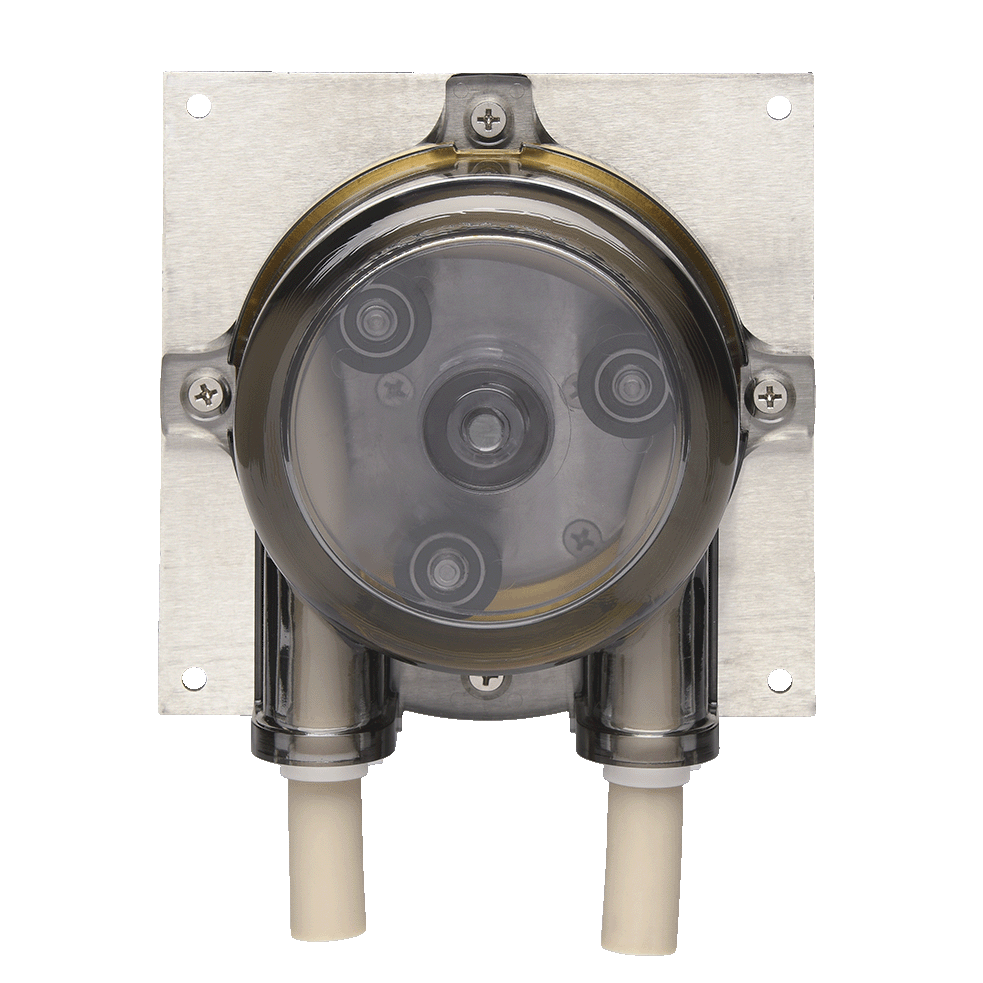

The A600BX-S is a high-flow pump designed for computerized control. It features a high-performance, brushless DC motor, paired with our serial control board, and can be managed by any serial compatible terminal emulator program from a list of basic commands. Serial connectivity is ideal for use with orchestration software, creating customized commands, or in automation applications.
Designed to operate with large bore Ultra Class tubing, this unit is ideal for pumping high volumes and viscous or abrasive fluids.
Features & Benefits
- 25:1 turndown provides a wide range of flow output
- Integrated pump and drive system
- Accepts continuous lengths of tubing for clean fluid paths
- Includes panel mounting plate for ease of installation
- Viscosity rating up to 3000 centipoise
- Made in USA
Flow Rates
| Flow Rates by RPM Class and Tube Bore (mL/min) |
| RPM Class |
Speed Setting |
Tube Bore |
| 3/8" |
| 300 |
Max |
4725 |
| Min |
173 |
| 150 |
Max |
2228 |
| Min |
81 |
|
NOTES TO FLOW CHART:
Flow rates are for guidance purposes only and are based upon pumping ambient temperature (22°C/72°F) water at zero pressure and zero lift. Rates may increase/decrease based upon numerous factors including: motor variances, tubing characteristics, fluid viscosity, lift height, pressure and number of rollers. Anko reserves the right to make changes at any time without prior notice. The information provided is not intended for a specific application purpose. |
Specifications
| SPECIFICATIONS |
| Pump Series |
A603BX-S |
| Tubing Class |
Ultra-Duty |
| Motor Type |
Brushless DC (42mm) |
| Operating Voltage |
24V |
| Rated Current |
2.5A |
| Duty Cycle |
Continuous |
| Est. Motor Life |
5,000+ Hours |
| Max. Outlet Pressure |
25 psi |
| MATERIALS OF CONSTRUCTION |
| Pump Head |
Polycarbonate |
| Roller Material |
Acetal |
| Rotor Material |
Polycarbonate |
