L400 Series Peristaltic Pump Head

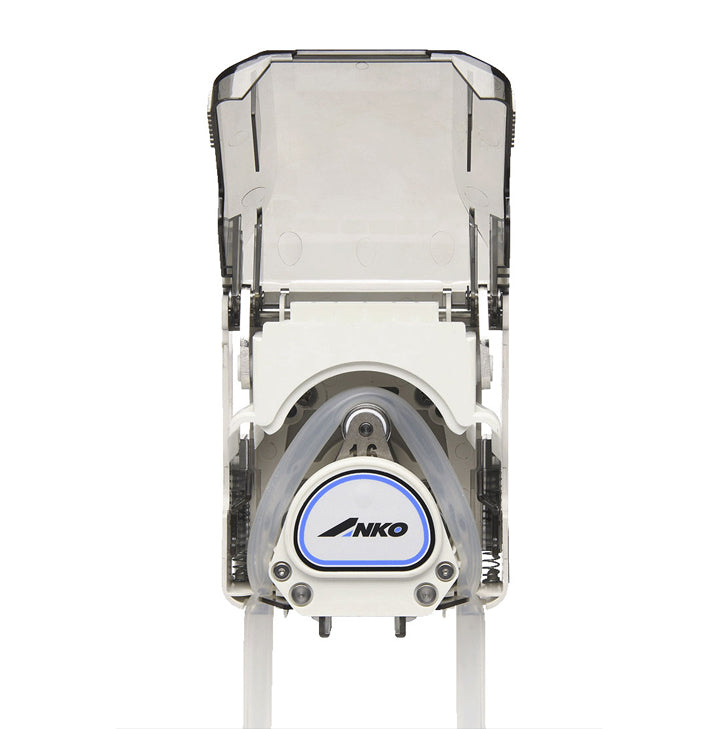

L400D | OEM Peristaltic Pump | 24V DC | Models to 1900 mL/min
L400D | OEM Peristaltic Pump | 24V DC | Models to 1900 mL/min
L400D | OEM Peristaltic Pump | 24V DC | Models to 1900 mL/min
L400 Series Peristaltic Pump HeadL400D | OEM Peristaltic Pump | 24V DC | Models to 1900 mL/minL400D | OEM Peristaltic Pump | 24V DC | Models to 1900 mL/minL400D | OEM Peristaltic Pump | 24V DC | Models to 1900 mL/min

L400D | OEM Peristaltic Pump | 24V DC | Models to 1900 mL/min

SKU: L401D-15
Tubing Class: Performance
RPM Class (See Flow Rates Table): 15
Price:
$255

Description

The L400D is a rapid-loading, laboratory grade pump driven by a 36mm brushed DC motor rated for continuous duty.

L400 Series pumps can be ordered to utilize Performance Class Tubing (L401 Models) or Premium Class Tubing (L402 Models), giving them the ability to perform in a wide range of applications. The pump ships with samples of 1/4", 3/16” & 1/8” bore Norprene® tubing according to the model type selected.

Features and Benefits

  • Flip-of-the-lid allows for fast and easy tubing changes
  • Automatic tubing retention
  • Convertible to alternate tubing class usage with change of Roller Assembly (sold separately)
  • Accepts continuous tubing for clean fluid paths
  • Side and bottom tubing entry ports for versatility
  • Friction-reducing Nylatron rollers
  • Stainless steel rotor assemblies available*
  • Available in 4 and 6 roller configurations *
  • Up to 25 psi working pressure
  • Made in USA



    * Please contact us for volume quotes or configurations not available on our web store.

    INCLUDES: Motor, pump head, mounting plate, and samples of Norprene® drive tubes (bore sizes: 1/4", 3/16", & 1/8"). Typically ships within 5 to 7 business days.

    California Proposition 65 Warning

    Flow Rates
    Flow Rates by RPM Class and Tube Bore (mL/min)
    RPM Class Tube Bore
    *5/16" 1/4" 3/16" 1/8" *1/16" *1/32"
    300 1947 1371 836 398 97 21
    150 817 575 351 167 41 9
    75 409 288 176 84 20 4
    15 88 62 38 18 4 1

    NOTES TO FLOW CHART:

    • *Unavailable for Premium Class Tubing
    • Flow rates are for guidance purposes only and are based upon pumping ambient temperature (22°C/72°F) water at zero pressure and zero lift. Rates may increase/decrease based upon numerous factors including: motor variances, tubing characteristics, fluid viscosity, lift height, pressure and number of rollers.
        Specifications
        SPECIFICATIONS
        Pump Series L401D | L402D
        Tubing Class Performance | Premium
        Motor Type Brushed DC (36mm)
        Operating Voltage 12V | 24V
        Rated Current 3.0A |1.5A
        Duty Cycle Continuous
        Est. Motor Life 2,500 Hours
        Max. Outlet Pressure 25 psi
        MATERIALS OF CONSTRUCTION
        Pump Head Polycarbonate / IXEF
        Roller Material MoS2 Filled Nylon or Stainless-Steel
        Rotor Material IXEF or Stainless-Steel
        DIMENSIONS

         STEP File
