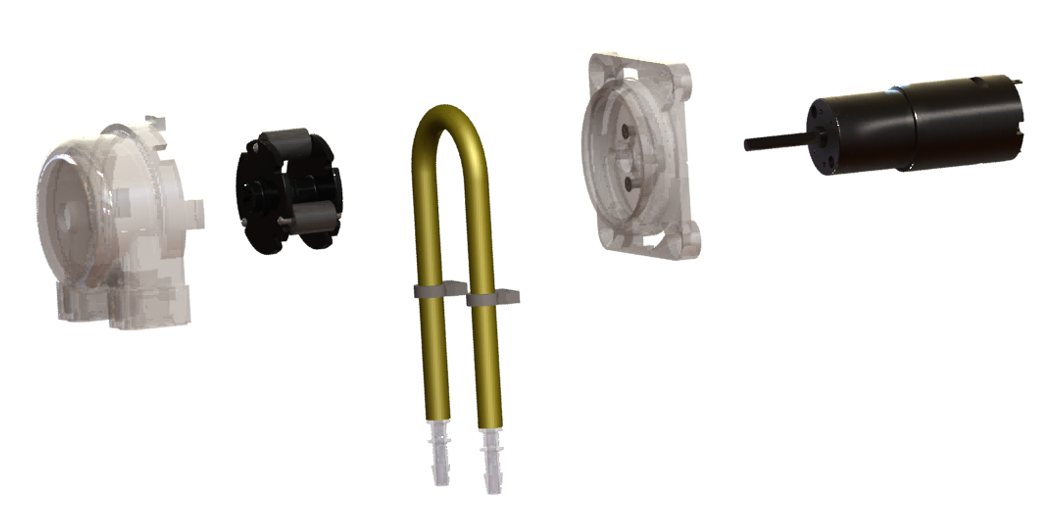

A200BX-FB | OEM Peristaltic Pump | Closed-Loop | 24V Brushless DC | Models to 675 mL/min

The A200BX-FB is a powerful, and compact pump designed for fixed output consistency. It features a high-performance, brushless DC motor, paired with our closed loop, PID (proportional–integral–derivative) controller that continuously regulates output to prevent under or over dosing. This advanced control feature makes the pump an ideal solution for precision dosing, dispensing, and mixing applications.

This pump accepts four different bore sizes of Performance Class Tubing.

Features and Benefits

• Compensates for variations in voltage, fluid viscosity and tubing condition
• Adjustments made every 10 milliseconds for high consistency
• Wide range of adjustable, fixed flow rates with included potentiometer
• High-Performance, planetary gearbox with all steel gears
• Integrated mounting plate for ease of installation
• Fast & easy tube changes - no tools required

• Accepts continuous tubing for clean fluid paths
• Available in a range of standard colors

• NSF/ANSI 29 rated models available

• Up to 25 psi working pressure

• Compact size
• Made in USA

Flow Rates

NOTES TO FLOW CHART: Flow rates are for guidance purposes only and are based upon pumping ambient temperature (22°C/72°F) water at zero pressure and zero lift. Rates may increase/decrease based upon numerous factors including: motor variances, tubing characteristics, fluid viscosity, lift height, pressure and number of rollers.

Specifications

SPECIFICATIONS
Pump Series	A200BX-FB
Tubing Class	Performance
Motor Type	Brushless DC (28mm)
Operating Voltage	24V
Rated Current	1.0A
Duty Cycle	50% (300 sec on time max)
Est. Motor Life	5,000+ Hours
Max. Outlet Pressure	25 psi
MATERIALS OF CONSTRUCTION
Pump Head	Polycarbonate
Roller Material	Acetal
Rotor Material	Acetal

DIMENSIONS

STEP File
